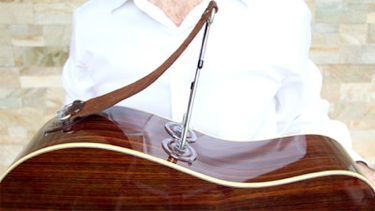

Attach to lower bout
(Guitar shown upside down)
Attach to each bout
(Guitar shown upside down)
To lower neck height
Move suction cups together
To raise neck height
Move suction cups apart
Across Lap / suction cup placement
Left leg / suction cup placement
Across Lap / suction cup placement
Left Leg / suction cup placement
Left Leg / suction cup placement
Right Leg / suction cup placement
How To: Basic Adjustment
Once you have found your basic placement, the guitar neck can be raised or lowered simply by moving the rear (strap) cup.
GUITAR SUPPORT PLACEMENT
How To: Basic Placement
The manner that every guitarist wears their guitar is personal. DE ORO Guitar Supports are very versatile and provide a wide range of placement and adjustment variations. Of the many possibilities, these 2 basic placements provide a good starting point and offer excellent comfort and versatility.
I encourage you to experiment and thereby find a position to your liking.
How To: Neck Angle
Care and Maintanence
* Keep the guitar surface and the suction cups clean. This will provide a stronger grip and further minimize the chance of scuffing.
* Do not place heavy items on top of the suction cups.
Classica, FlamencoLoco, and Guitarest Trio, Guitarest Quatro guitar supports
Easily fit in headstock or neck storage areas of most guitar cases. When storing in the headstock area, fold the strap on the upper side to act as protection and padding between the support and guitar.
In some soft shell cases, the support can fold up and remain on the guitar in it’s case. Fold the strap between the guitar and frame.
Mini Traveler
Folds up to remain on the guitar in it’s case. 15mm (3/5”) space and/or collapsible padding required.
Fold the strap between the guitar and frame.
Transport & Storage:
Guitarest Trio, Guitarest Quatro & FlamencoLoco have the same size frame & neck angle results are similar. Examples below are for Trio, Quatro & FlamencoLoco supports.
The Classica has a larger frame to easily achieve the no hands balance. Examples below are for the Classica support.
While the Classica may also be worn on the right leg, it’s size and balance point is optimized for left leg and lap.
At the placements shown, the guitar is balanced with minimal, or no effort by the left hand.
The Mini Traveler is designed for right leg & left leg. Examples below are for the Mini Traveler support.
Right leg / suction cup placement
Troubleshooting:
Trouble with cups sticking:
-
1.Ensure the cups and the guitar surface is clean.
-
2.Slight moistening the cups before each application will ensure optimal suction.
Guitar feels unstable:
Make sure support is attached right-side up.
1. See that the suction cups release tabs are facing outward and the rough side of the strap is on the leg. When this is the case, the De Oro logo will be visible, facing the guitar. If not, this means the support has been installed upside down. Simply flip the support 180 degrees and re-install.
